Laser marking machine for production date of packing box
Basic information
商品名稱： 包裝盒生產日期激光打標機
商品編號： 包裝盒生產日期激光打標機
上架時間： 2015-05-21
適用材料： 打標的材料主要有竹木制品、陶瓷、紙張、布料皮革、有機玻璃、環氧樹脂、亞克力、不飽和聚酯樹脂等非金屬材料。
適用行業： 工藝禮品、有機玻璃、服裝皮革、木頭紙張、食品包裝、電子元器件、PCB、柔性線路板、陶瓷基片、半導體、晶體玻璃、塑料連接器、硅橡膠按鍵、SMD元件以及其他各種材料上的圖文標刻。
Product details

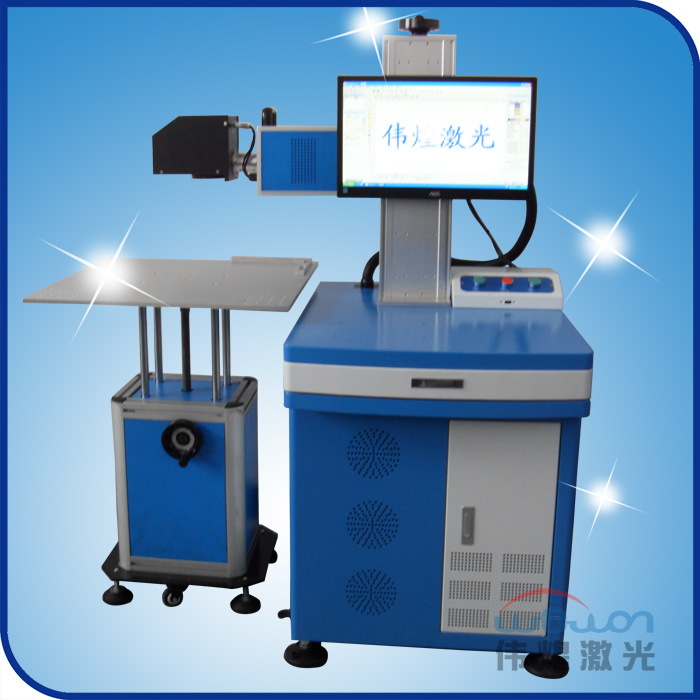

Trade name: laser marking machine for production date of packing box
Product No.: laser marking machine for production date of packing box
On sale time: 2015-05-21
Applicable materials: Bamboo and wooden products, ceramics, paper, cloth, leather, organic glass, epoxy resin, acrylic, unsaturated polyester resin, and other non-metallic materials.
Application: Gifts, organic glass, leather clothing, wood, paper, food package, electric appliance, PCB, flexible circuit board, ceramic substrate, semiconductor, crystal glass, plastic connector, SMD element, and other materials.
<p align="left"> The product adopts American carbon dioxide laser. It is a universal model adopting high-speed scanning galvanometer. Software adopts Windows interface, which is com compatible with Coreldraw, Autocad, Photoshop and other software output files. It supports PLT, AI, PCX, DXF, BMP and other documents.</p>
<p><br />
<span style="color:#008080;"><strong>Technical parameters: </strong></span></p>
<table align="left" bgcolor="#000000" border="0" cellpadding="0" cellspacing="1" class="table" width="100%">
<tbody>
<tr>
<td align="middle" bgcolor="#ffffff">Model</td>
<td bgcolor="#ffffff">
<p align="center">WH-C30</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Laser Type</p>
</td>
<td bgcolor="#ffffff">
<p align="center">Imported metal packaging RF CO2 laser</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Cooling Mode</p>
</td>
<td bgcolor="#ffffff">
<p align="center">Air-cooled or water-cooled</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Marking Mode</p>
</td>
<td bgcolor="#ffffff">
<p align="center">Plane / cylinder</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Beam Expanders</p>
</td>
<td bgcolor="#ffffff">
<p align="center">3-8times(optional)</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Marking Area</p>
</td>
<td bgcolor="#ffffff">
<p align="center">110mm*110mm,175mm*175mm<br />
250mm*250mm,</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Maximum Laser Power</p>
</td>
<td bgcolor="#ffffff">
<p align="center">30W</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Optical maser wavelength</p>
</td>
<td bgcolor="#ffffff">
<p align="center">10.6um</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Minimum Line Width</p>
</td>
<td bgcolor="#ffffff">
<p align="center">0.10mm</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Marking Line Speed</p>
</td>
<td bgcolor="#ffffff">
<p align="center">≤7000mm/s</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Repeat Positioning Accuracy</p>
</td>
<td bgcolor="#ffffff">
<p align="center">±0.01mm</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Engraving Depth</p>
</td>
<td bgcolor="#ffffff">
<p align="center">≤3mm</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Minimum Characters</p>
</td>
<td bgcolor="#ffffff">
<p align="center">0.40mm</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Pulse Frequency/Laser Repetition Rate</p>
</td>
<td bgcolor="#ffffff">
<p align="center">≤25KHZ</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Dimensions (L x W x H)</p>
</td>
<td bgcolor="#ffffff">
<p align="center">800mm*750mm*1500mm</p>
</td>
</tr>
<tr>
<td bgcolor="#ffffff">
<p align="center">Weight</p>
</td>
<td bgcolor="#ffffff">
<p align="center">Net weight:120kg</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p><strong><span style="color:#008080;">Samples:</span></strong></p>
<p><img alt="" src="/Public/userfiles/images/2(11).jpg" style="width: 700px; height: 168px;" /></p>
