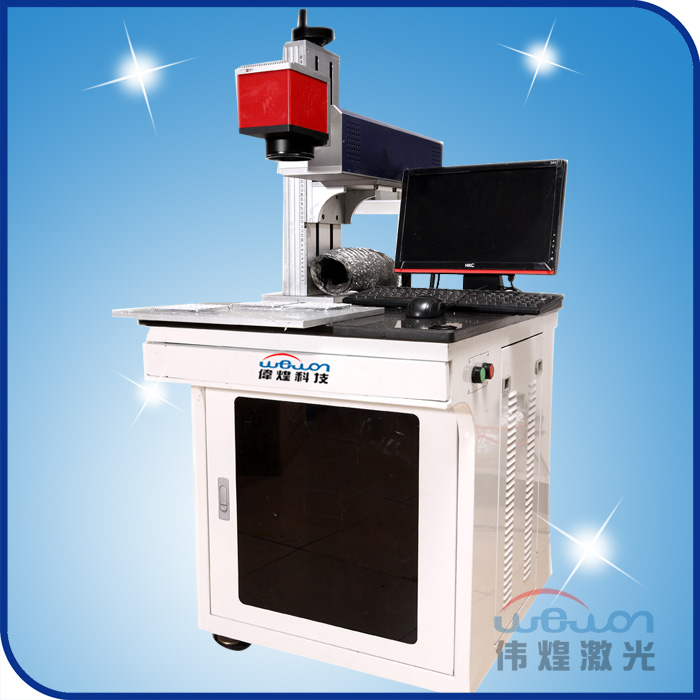

WH-EP12 end pump laser marking machine

Basic information

商品名稱： WH-EP12 端泵激光打標機
商品編號： WH-EP12 端泵激光打標機
上架時間： 2015-05-21
適用材料： 塑膠透光按鍵、IC芯片、數碼產品部件、精密機械、珠寶首飾、潔具、量具刃具、鐘表眼鏡、電工電器、電子元器件、五金飾品、五金工具、手機通訊部件、汽摩配件、塑膠制品、醫療器械、建材管材等高精度產品標識、手機
適用行業： 金屬及多種非金屬材料，高硬度合金、氧化物、電鍍、鍍膜、ABS、環氧樹脂、油墨、工程塑料等。

Product details

Product introduction

Trade name: WH-EP12 end pump laser marking machine
Product No.: WH-EP12 end pump laser marking machine
On sale time: 2015-05-21
Applicable materials: Plastic translucent key, IC chip, digital product component, precision machinery, jewelry, sanitary, electrical engineering and electric apparatus, hardware tool, plastic product,etc.
Application: Metalic and nonmetalic materials, high hardness alloys, oxides, plating, coating, ABS, epoxy resins, inks, engineering plastics, and etc.

Details

Product features:

　　Using German 808nm semiconductor pump fibre coupling solid-state laser, electro-optical conversion efficiency is up to 60% and the beam quality is Temoo module. It is suitable for processing translucent key products and marking high-precision metal products. The product adopts the original German SCANLAB scanning head. High marking speed (four times higher than that of ordinary YAG lamp-pumped laser marking machine). Air-cooled, no consumable items, maintenance-free for five years, low cost, and low energy consumption.

Software functions:

　　It can receive a variety of BMP, JPG, DXF, PLT, AI and other documents; it can automatically generate a variety of serial numbers, production dates, one-dimensional codes, and two-dimensional code; it supports flight marking; supports rotating marking; supports large area XY platform automatic segmentation marking

Parameters:

Model	WH-EP12	WH-EP20
Laser Power	≦12W	≦20W
Optical maser wavelength	1064nm	1064nm
Optical quality	<1.1	<1.5
Q Frequency	0KHz~200KHz	0KHz~200KHz
Standard Engraving Range	180mm*180mm	180mm*180mm
Optional Engraving Area	110mm110mm 150mm150mm	110mm110mm 150mm150mm
Engraving Depth	≦1mm	≦1.5mm
Machine Power	500W	800W
Minimum Line Width	0.01mm	0.01mm
Repeat Accuracy	±0.001mm	±0.001mm
Electricity Demand	single phase AC90~250V/50HZ 5A	single phase AC90~250V/50HZ 10A
Cooling Mode	Air-cooled	Air-cooled

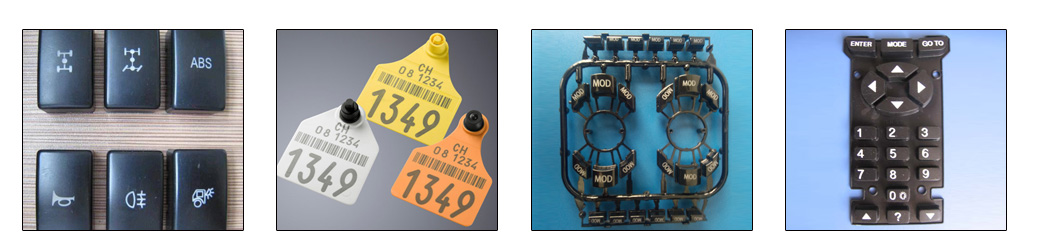

Samples:
