fiber fiber laser marking machine
Basic information
商品名稱: 便攜式光纖激光打標機
商品編號: 便攜式光纖激光打標機
上架時間: 2015-05-21
適用材料: 手機按鍵、透光按鍵、集成電路(IC)、金屬制品等.
適用行業: 電子通訊、精密五金、飾品、電工電器、汽車配件、儀表儀器、衛浴潔具、眼鏡鐘表等行業.
Product details

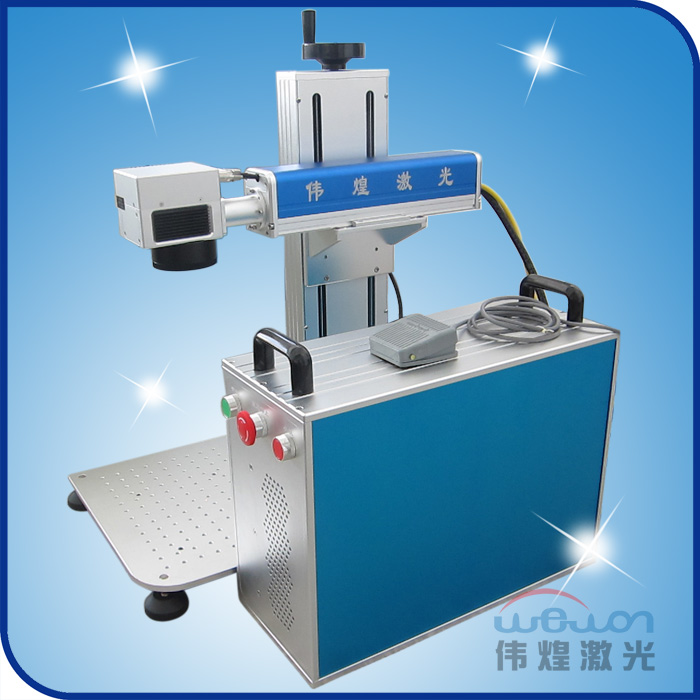

Trade name: portable fiber laser marking machine
Product No.: portable fiber laser marking machine
On sale time: 2015-05-21
Applicable materials: Phone keypad, translucent keys, an integrated circuit (IC), and metal products
Application: Electronic communication, precision metal, jewelry, electrical engineering and electric apparatus, auto parts, instrument, bathroom, and other industries.
Product introduction:
1. Excellent beam quality and small volume;
2. High marking accuracy and high speed;
3. Maintenance free;
4. Long service life;
5. Pollution-free, no noise, low energy, electricity and power consumption;
6. Adopting WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP and other documents.
1. Long service life
2. Maintenance-free
3. Portable, flexible, and environment friendly
4. Low energy consumption (0.5 kWh/h)
5. Fine carving characters (minimum 0.2MM)
6. High speed
Technical parameters:
Model |
WH-box-FM20/ WH-box-FM30 |
Laser Type |
IPG laser generator (10.64µm) |
Cooling Mode |
Air-cooledair cooling |
Rated Power |
20W/30W |
Frequency |
20-200KHZ |
Scanning Speed |
9000mm/s |
Scanning Accuracy |
±0.05mm |
Repeat Accuracy |
±0.001mm |
Processing Range |
100*100mm(Other processing ranges are optional) |
Minimum Line Width |
0.01mm |
Minimum Characters |
0.2mm |
Machine Power |
500W/600W |
Power supply |
1PH+1 AC 220V 10A 50/60HZ |
Dimensions |
650*400*800mm |
Weight |
About 25kg |
Environmental Requirements |
Temperature: 20℃-30 ℃ Humidity: 30%-80% (non-condensing) |
System/Compatible Format |
Windows XP/AI, PLT, DXF, BMP, JPEG |

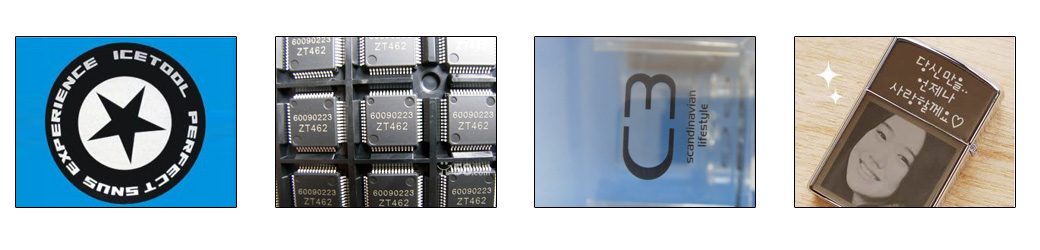

Samples:
