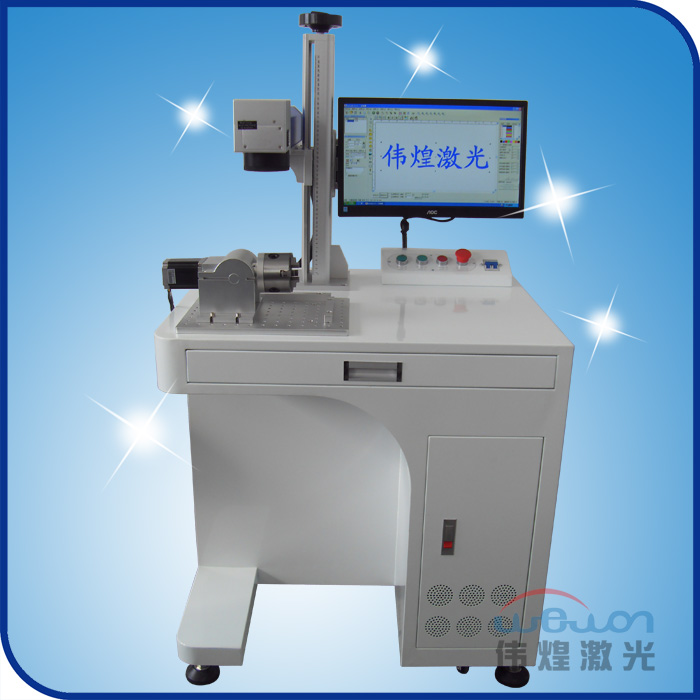

360° rotating fiber laser marking machine
Basic information
商品名稱： 360度旋轉光纖激光打標機
商品編號： 360度旋轉光纖激光打標機
上架時間： 2015-05-21
適用材料： 任何金屬(含稀有金屬)、不銹鋼、氧化鋁材質、工程塑料、電鍍材料、鍍膜材料、噴涂材料、塑料橡膠、環氧樹脂、陶瓷、等材料。
適用行業： 手機外殼、氧化鋁、鋁合金、手機不銹鋼飾片、電子元器件、集成電路（IC）、電工電器、通訊產品、衛浴潔具、工具配件、刀具、眼鏡鐘表、珠寶首飾、汽車配件、箱包飾扣、炊具、不銹鋼制品等行業。
Product details
Trade name: 360°rotating fiber laser marking machine
Product No.: 360°rotating fiber laser marking machine
On sale time: 2015-05-21
Applicable materials: Any metal (including rare metals), stainless steel, aluminium oxide, engineering plastic, electroplating material, spraying material, plastic, rubber, epoxy resin, ceramics, and other materials.
Application: Cell phone case, alumina, aluminum alloy, electronic components, integrated circuit (IC), electrical engineering and electric apparatus, sanitary, tools, auto parts, stainless steel products and other industries.
It adopts fiber laser output laser and can realize marking function through high-speed scanning galvanometer system. It has high electro-optical conversion rate. The product adopts air-cooled system. It has performances such as adjustment free, maintenance free, and high reliability.
Equipment features:
● Excellent optical quality.
● Low cost.
● Maintenance-free.
● Long service lfie.
● Small volume, suitable for severe environment.
●High speed.
●The fastest laser marking speed.
●Laser: the most cost-effective laser.
●Operating platform adopts high-quality stainless steel profiles.
●Humanized software.
Technical parameters:
Model |
WH－FM10/20 |
|
Design Mode |
Portable/Table |
|
Max. Average Power |
10W/20W |
|
Wavelength |
1064nm |
|
Beam Quality |
<1.5 M² |
|
Marking Area |
150mmx150mm/110mmx110mm |
|
Lens |
F230(Standard)/F163(Optional) |
|
Laser Frequency |
20Khz-200Khz continuously adjustable |
|
Power Consumption |
<500W |
|
Marking Speed |
≤1200mm/s |
|
Min. Character size |
0.3mm |
|
Min. Linear Width |
50um |
|
Power Stability(8h) |
＜±1%rms |
|
Pulse Repetition Frequency |
≤100kHZ |
|
Marking Graph |
User-defined character ,CAD data |
|
Supported Format |
BMP,JPG,TIF,PCX,TAG,IOO,GIF,PLT |
|
Cooling Mode |
Air cooling |
|
Environmental Temperature |
10℃-30℃ |
|
Humidity |
45%-75% |
|
Working Voltage |
220V±22V/50HZ/4A |
|
Dimension |
800*880*1520mm(wooden box size) |
|
760mmx800mmx1470mm |
|
|
Weight |
90Kg |

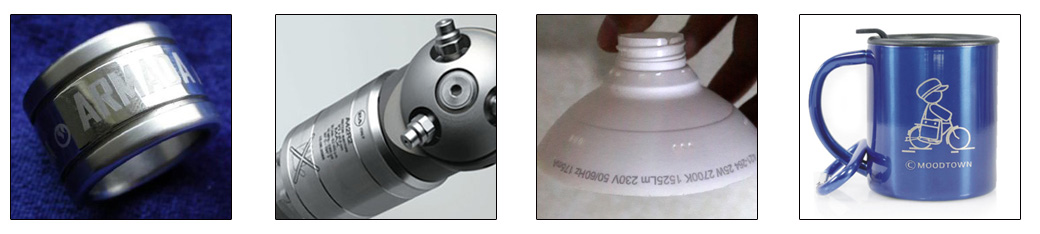

Samples:
.jpg)
