Product

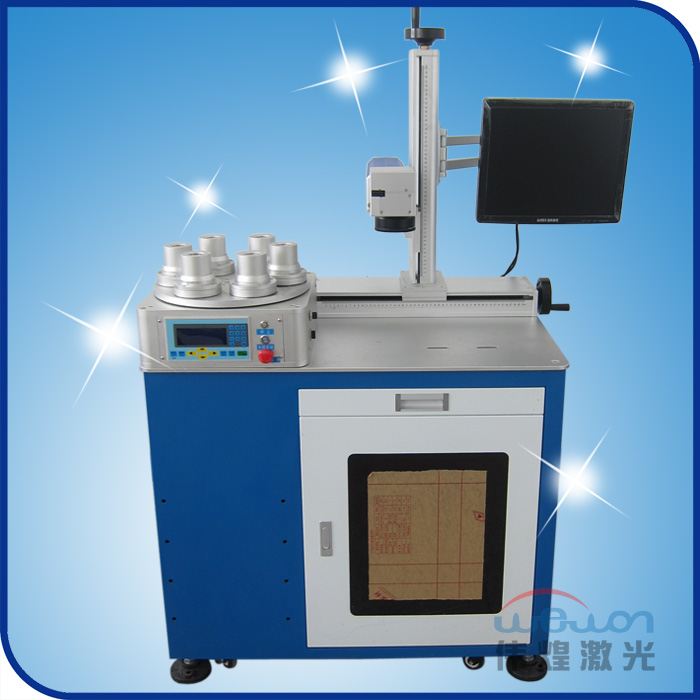

led lamp laser marking machine

Basic information

商品名稱： led燈具激光打標機
商品編號： led燈具激光打標機
上架時間： 2015-05-21
適用材料： 金屬及多種非金屬材料，高硬合金、氧化物、電鍍、鍍膜、ABS、環氧樹脂、油墨、LED燈管、工程塑料等。
適用行業： LED燈具、塑膠透光按鍵、IC芯片、數碼產品部件、精密機械、珠寶首飾、潔具、量具刃具、鐘表眼鏡、電工電器、電子元器件、五金飾品、五金工具、手機通訊部件、汽摩配件、塑膠制品、醫療器械等高精度產品標識。

Product details

Product introduction

Trade name: ledlamp laser marking machine
Product No.: ledlamp laser marking machine
On sale time: 2015-05-21
Applicable materials: Metal and various non-metallic materials, high-hardness alloy, oxide, electroplating, ABS, epoxy resin, ink, LED modulator tube, engineering plastic, and etc.
Application: LED lamp, plastic transmitting keyboard, IC chip, digital product parts, precision machinery, jewelry, sanitary appliance, glasses, electrical engineering and electric apparatus, hardware tool, and etc.

Details

Product introduction:
1. Adopting international advanced laser technology. Small volume, high speed.
2. Long service life os the laser module (more than 100 thousand hours), normal life is about ten years, low power consumption (<160W), high beam quality, high speed (> 800 characters / sec), maintenance-free.
3. The product is equipped with the most advanced high-precision digital scanning galvanometer with high-quality laser beam
4. Special marking software and control card USB interface to ensure fast and stable transfer. With analog and digital transmission functions. The software is easy to operate.
5. The product is equipped with a dual-axis moving platform.

Product advantages:

1. High speed.
2. Convenient to use.
3. Simple operation.
4. Free of polltion and radiation.
5. Low requirement on working environment.

Main technical parameters:

Product features
Model	WH-FM 10AUTO	WH-FM 20AUTO
Laser output power	≤10W	≤20W
Optical maser wavelength	1064nm	1064nm
Optical quality M2	1.4	1.8
Q Frequency	20kHz~100kHz	20kHz~200kHz
Standard Engraving Range	110mm×110mm	140mm×140mm
Optional Engraving Area	70mm×70mm/150mm×150mm	70mm×70mm/150mm×150mm
Engraving Depth	≤1mm	≤2mm
Machine Power	400W	500W
Marking minimum line width	25um	25um
Repeat Accuracy	±0.001mm	±0.001mm
Electricity Demand	Single phase AC 90-250V/50Hz 5A	single phase AC 90-250V/50Hz 10A
Marking Speed	400 character/s	500 character/s
Dimensions (L × W × H)	960mm×700mm×1470mm
Cooling System	Air-cooled

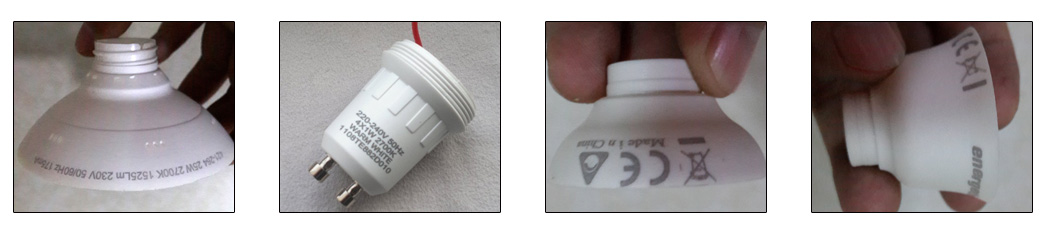

Samples:
